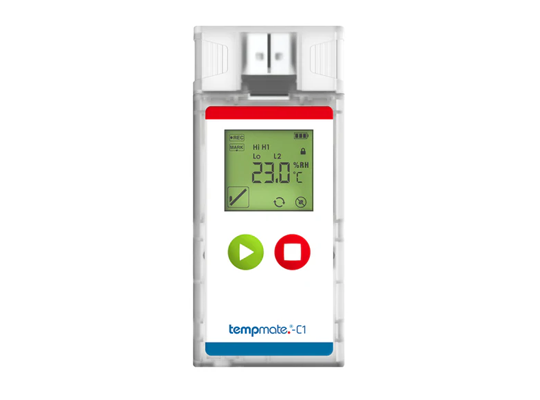

tempmate-C1 USB Dry Ice Temperature Data Logger
The tempmate-C1 can record temperatures as low as -90°C (-130°F) and provide a reliable overview of your dry ice shipments. For this purpose, the entire device has been designed so that every component, be it the electronics or the housing, can withstand extreme temperatures from -90°C to +70°C without issue. The dry ice temperature data logger will record up to 90 days from start and has programmable sample rates from 1 minute to 24 hours. The tempmate-C1 can be stopped and started multiple times as long as the cumulative logging period is less than 90 days. The accuracy is ±0.5°C from -30°C to +70°C and ±1.0°C from -90°C to -30°C.
application examples
- Monitoring Dry Ice Shipments
- -80°C Freezers
- Temperature Sensitive Goods In Transit
- Cold Chain
- Clinical Trials
- Vaccine Monitoring
specification
- Log Duration: 90 days cumulative. Unlimited start stop operations up to 90 days.
- Shelf Life: 24 months from production. Minimum 18 months on delivery. Please contact us if longer shelf life is required.
- Waterproof: IP65 = Protected against solid objects like dust and sand. Protected from water jets.
- Temperature Range: -90°C to +70°C
- Accuracy: ±0.5°C
- Sample Rate: 1 Minute to 24 hours
- Number of Readings Stored: 20,000
- Reusable Memory When Full: Memory is cleared each time the data logger is started
- Alarm Type: three high alarms and three low alarms, user configurable.
- Time & Date Format: All readings are stored in GMT irrespective of timezone.
- Weight: 15.2g
- Dimensions: 96mm (L) x 44mm (W) x 15mm (H)
- Response Time (T90): 3 minutes in air
To view the full specification please download the datasheet below.
download
description
The tempmate-C1 cryogenic temperature data logger can record temperatures as low as -90°C and provide a reliable overview of your dry ice shipments. For this purpose, the entire device has been designed so that every component, be it the electronics or the housing, can withstand extreme temperatures from -90°C to +70°C without issue. The temperature data logger will record up to 90 days from start with programmable sample rates from 1 minute to 24 hours. The tempmate-C1 can be stopped and started multiple times if the cumulative logging period is no longer than 90 days. The accuracy is ±0.5°C from -30°C to +70°C and ±1.0°C from -90°C to -30°C.
The tempmate-C1 dry ice temperature data logger is supplied with the most common configuration, but the onboard configuration software is available if changes to the default configuration are required.
Up to 6 alarm points can be configured, three high and three low alarms. An alarm delay can also be specified.
Once configured, one push of the start button is required to start monitoring, and no other accessories are needed. Configurations can be saved in a file on the computer and then loaded onto multiple data loggers, making configuration quick, simple and repeatable.
Once the shipment reaches its destination, the tempmate-C1 dry ice temperature data logger is connected to the computer via USB, and PDF and CSV format reports are automatically generated.
