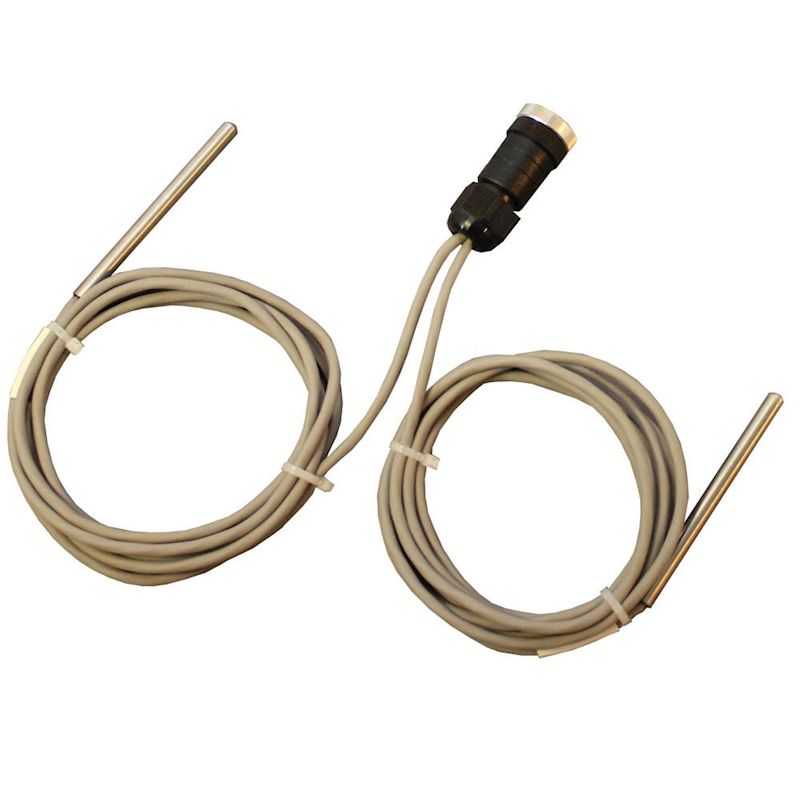

SPYDAQ-ACC-08-01 Dual Temperature Sensor (-50°C to +200°C)
Dual temperature sensor for use with the SPYDAQ-1010 dual transmitter. Two sensors, 75mm long x 6mm diameter on 1.5m flat PTFE flying leads. There are two sensors, labelled "Sensor A" and "Sensor C".
Sensor A Measuring Range: -40°C to +105°C (-40°F to +221°F)
Sensor C Measuring Range: -50°C to +200°C (-58°F to +392°F)
application examples
specification
- Measuring Range :
- Sensor A: -40°C to +105°C (-40°F to +221°F)
- Sensor C: -50°C to +200°C (-58°F to +392°F)
- Accuracy :
- ±0.5°C from 0°C to +50°C. ±1°C outside of this range for the internal sensor - Sensor A
- ±0.3°C ±0.35°% of reading for the external sensor - Sensor C
- Material : Sheath: 308 Stainless Steel. Leads: PTFE
- Dimensions : 75mm Long x 6mm Diameter supplied with 1.5m flying lead. Flying lead only 1mm thick.
- Warranty : 1 Year
To view the full specification please download the datasheet below.
description
Temperature Sensors for SPYDAQ-1010 Transmitters
Dual temperature sensor for use with the SPYDAQ-1010 dual transmitter. Two sensors, 75mm long x 6mm diameter on 1.5m flat PTFE flying leads. There are two sensors, labelled "Sensor A" and "Sensor C".
Sensor A Measuring Range: -40°C to +105°C (-40°F to +221°F)
Sensor C Measuring Range: -50°C to +200°C (-58°F to +392°F)
SPYDAQ-ACC-08-02 is identical but operates from -40°C to +105°C on sensor A and -80°C to +200°C on sensor C.
If you'd like further information, please contact us on 01684 299 399 or click here.
