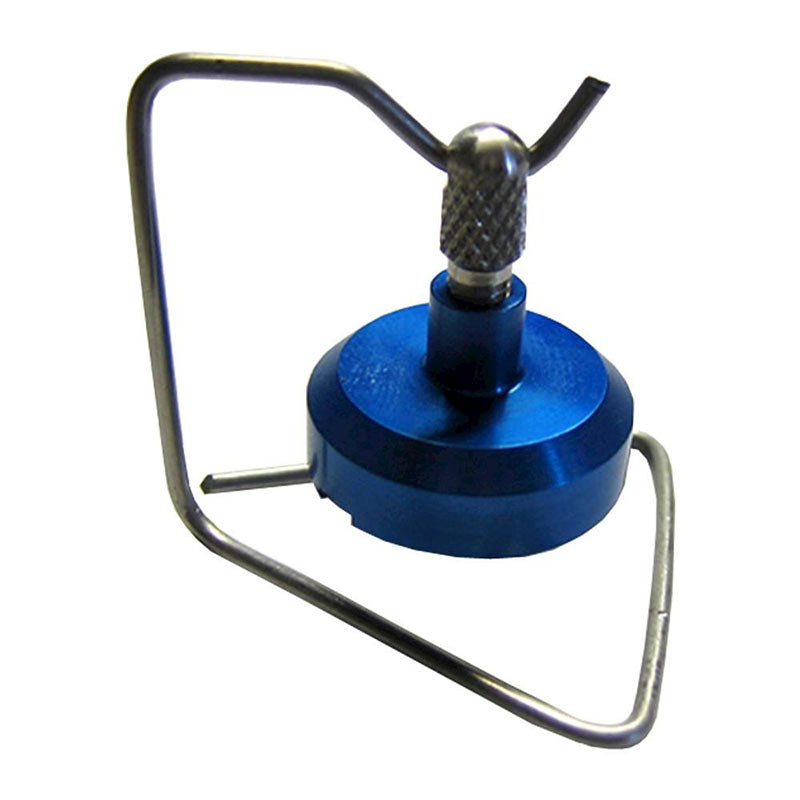

SL50-ACC10 Fast Thermal Response Enclosure
Constructed from blue anodised aluminium, the SL50-ACC10 is a fast response enclosure for use with all SL50 series miniature temperature data loggers. An FDA food grade approved O-Ring seals the front face of the miniature data logger whilst allowing fluids to flow over the main body and therefore improve response times. The stainless steel support frame is also included.
application examples
- Autoclave Verification
- Dental Autoclave Verification
- Food Processing
specification
- Operating Temperature Range : -15°C to +140°C
- Dimensions : Diameter 21.0mm, Height 24mm, 35mm x 35mm x 35mm high when used with support frame
- Weight : 4.7g excluding data logger
- Protection : Up to 3.5 Bar or 35m submersion
- IP Rating: IP68
- Response Time In Water : 63% Step Change: 28 Seconds, 10% to 90% Step Change: 60 Seconds
- Response Time In Air : 63% Step Change: 117 Seconds, 10% to 90% Step Change: 238 Seconds
- O-Ring : Black, Ethylene Propylene Rubber EPDM, NSF 61, KTW, WRAS, OVGM approved, FDA compliant
To view the full specification please download the datasheet below.
description
Diameter 21.0mm, Height 24mm
35mm x 35mm x 35mm high when used with support frame
Weight: 4.7g excluding data logger
Pressure Rating: ±3.5 Bar
Contact us here for more information or call the office on 01684 218531.
